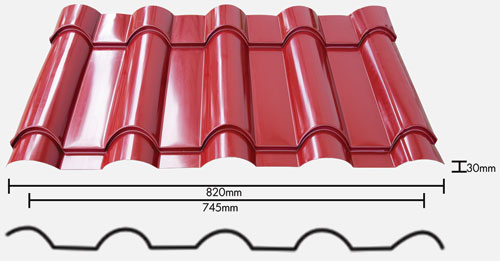

HSRM E-Gle® Metal Roofing Tile

Batten Spacing

E-Gle® Metal Roofing Tile is supported by the roof battens on the rafters. Tack the eaves batten against fascia board. Then set and tack the second batten to 205mm from the eaves batten. Lay the rest of the battens to module length 305mm across the rafters, up to the ridge and tack them in position. Battens are cut to length so they butt together on top of the rafters.

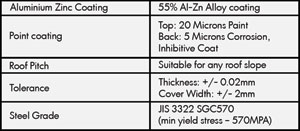

E-gle® Metal Roofing Tile Specification

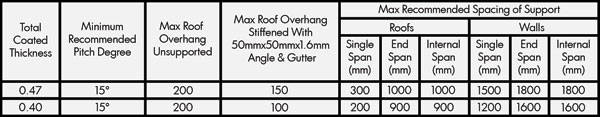

Recommended Specification For E-gle® Metal Installation

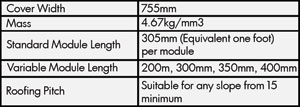

E-gle® Metal Roofing Specification
